千兆光模块

当下，5G网络已经覆盖了大部分地区了，光模块行业也在迅速的发展当中，从最开始的百兆光模块、千兆光模块、万兆光模块到快速的100G、200G、400G，光模块的价值也是在随着不断的上升，情景运用不一样运用的控制模块业有所不同，如果是用在千兆以太网中，就只必须用千兆光模块才可以。大家日常所说的千兆光模块就是指传输速度为1.25Gbps的光模块，一般的情况下有SFP和GBIC两种封裝模式，而比较普遍的封裝就是SFP封裝，SFP光模块容积比GBIC光模块要相对缩小一半，他的作用基本上和GBIC光模块一致，我们可以简易的理解成GBIC光模块的升級款，传送间距可以达到80-160km。千兆光模块运用于千兆以太网中，是现阶段大中小型大数据中心上运用较多的一种光模块。千兆光模块早已是十分完善的产品系列，其功能损耗低、体型小、传送距离较远、质优价廉等优点备受众多客户钟爱。

产品描述

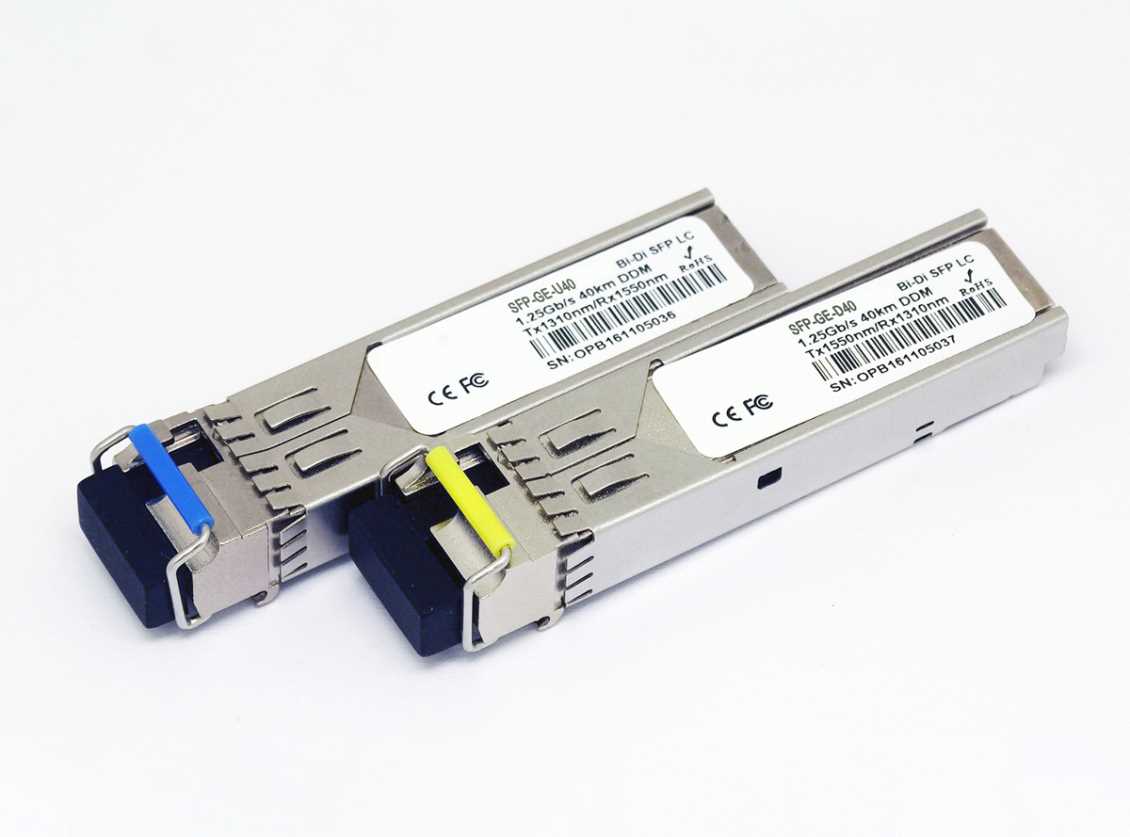

· 产品型号:SFP-GE-BXX-XXX

· 兼容品牌:全系列

· 封装类型:SFP

· 传输速率:Operating Data Rate up to 1.25Gbps

· 传输距离:3~160KM可选

· 发射波长:1310nm/1550nm/1490nm 可选

· 接收波长:1310nm/1550nm/1490nm 可选

· 工作温度:商业级0℃～+70℃/工业级-40℃～+85℃ 可选

· 数字诊断:带DDM/不带DDM 可选

· 接收灵敏度:3~120KM可选

特征

高达 1.25Gbps 的数据速率

1310nm/1550nm/1490nm 激光和 PIN/APD 光电探测器，用于 0~160km 传输

符合带有单工 LC/SC 插座的 SFP MSA 和 SFF-8472

数字诊断监控：内部校准或外部校准

符合 RoHS

+3.3V单电源

工作外壳温度：标准：0 至 +70°C / 工业：-40 至 +85°C 与 SONET 兼容

Up to 1.25Gbps data-rate
1310nm/1550nm/1490nm laser and PIN/APD photodetector for 0~160km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC/SC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature: Standard : 0 to +70°C / Industrial : -40 to +85°C Compatible with SONET

应用

千兆以太网

光纤通道

切换到切换界面

交换背板应用

路由器/服务器接口

其他光传输系统

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

承诺

一年内提供免费维修或更换服务；
一年以上三年以内提供收材料成本费，免维修费的保修服务

规格

1310NM/1510NM Ordering information

Part Number	Product Description
SFP-GE13-03	1310nm, 1.25Gbps, 3km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE15-03	1550nm, 1.25Gbps, 3km, Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE13-10	1310nm, 1.25Gbps, 10km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE15-10	1550nm, 1.25Gbps, 10km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE13-20	1310nm, 1.25Gbps, 20km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE15-20	1550nm, 1.25Gbps, 20km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE13-40	1310nm, 1.25Gbps, 40km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE15-40	1550nm, 1.25Gbps, 40km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE13-80	1310nm, 1.25Gbps, 80km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE15-80	1550nm, 1.25Gbps, 80km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM

1310NM/1490NM Ordering information

Part Number	Product Description
SFP-GE34-03	1310nm, 1.25Gbps, 3km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE43-03	1490nm, 1.25Gbps, 3km, Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE34-10	1310nm, 1.25Gbps, 10km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE43-10	1490nm, 1.25Gbps, 10km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE34-20	1310nm, 1.25Gbps, 20km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE43-20	1490nm, 1.25Gbps, 20km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE34-40	1310nm, 1.25Gbps, 40km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE43-40	1490nm, 1.25Gbps, 40km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE34-80	1310nm, 1.25Gbps, 80km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE43-80	1490nm, 1.25Gbps, 80km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM

1550NM/1490NM Ordering information

Part Number	Product Description
SFP-GE54-03	1550nm, 1.25Gbps, 3km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE45-03	1490nm, 1.25Gbps, 3km, Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE54-10	1550nm, 1.25Gbps, 10km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE45-10	1490nm, 1.25Gbps, 10km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE54-20	1550nm, 1.25Gbps, 20km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE45-20	1490nm, 1.25Gbps, 20km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE54-40	1550nm, 1.25Gbps, 40km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE45-40	1490nm, 1.25Gbps, 40km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE54-80	1550nm, 1.25Gbps, 80km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE45-80	1490nm, 1.25Gbps, 80km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE54-120	1550nm, 1.25Gbps, 120km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM
SFP-GE45-120	1490nm, 1.25Gbps, 120km,Standard 0 to +70°C/Industrial -40 to +85°C,SC/LC,DDM/NO DDM

千兆光模块由于其完善的体系，市场上出现了各种各样的千兆光模块，挑选千兆光模块时需要根据实际的应用领域来进行选择的，那么有哪些参考条件呢？比如兼容的机器设备种类、光纤线資源、传送间距这些，卓安通信为您给予技术专业的光纤通信解决方法。我公司专业研发制造光模块、千兆光模块、万兆光模块、SFP、SFP模块、SFP光纤模块、QSFP光模块、XFP光模块、XFP等，是一家专注于通信解决方案的光模块厂家！
